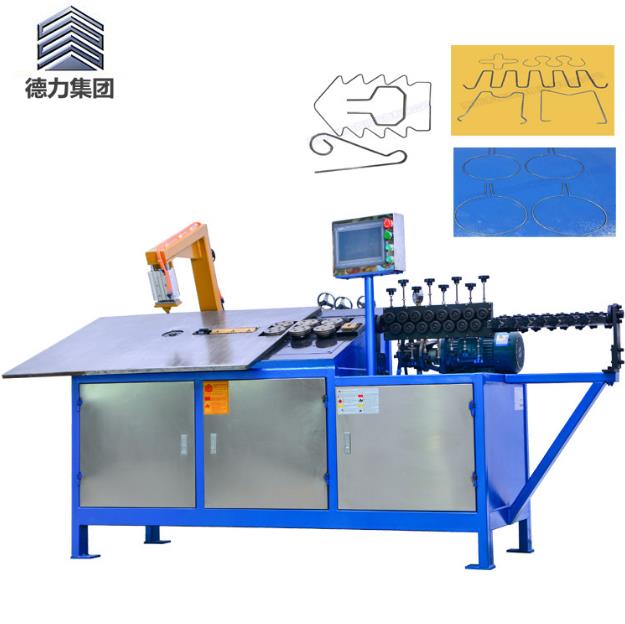

WB系列二维数控全自动铁线折弯机

WB SERIES 2D CNC FULLY AUTOMATIC WIRE BENDING MACHINE

设备概述：

General Description:

二维数控全自动铁线折弯机是一种主要用于将金属线材，进行平面二维弯曲成型的设备，实现各种不同规格的线材形状的成型加工。2D CNC Fully Automatic Wire Bending Machine is mainly used for bending and forming various metal wire into different shape in two-dimensional.

该设备的送线及旋转折弯系统均采用伺服电机驱动，显著的提高了产品的精度，同时有效的增加了机头的移动速度和设备的灵活性，并且大大的提高了生产效率。

The wire feeding and rotary bending system both adopt servo motor,significantly improves the precision of the product, and increases the speed and flexibility of machine effectively,furthermore greatly improves the production efficiency.

针对线材加工，种类繁多、形状各异的特点，专门设计了具有记忆存储功能的控制系统，可保存100组不同产品的加工程序，需要时可随意调取其中任何一组。

According to the characteristics of wire processing, various kinds and shapes,we specially design the controlling system with a memory storage function,which can save more than 100sets of processing program for different products, can optionally select any one of them when needed.

设备主要功能及特点:

Main Features and Functions:

1.全系列二维数控铁线折弯机，完全按照欧洲标准设计制造，适合铁线工业的各种平面形状；

1.A full range of CNC Programmable wire bending machines for two-dimensional wire bending and forming, is manufactured according to European machine standards;

2合理的设计,高强度机械结构，最低的运行要求；

2.Heavy duty mechanical structures and minimum setup requirements due to reasonably design.

3.友好的人机界面，操作简单易学，设置输入铁线形状及规格非常方便；

3.Friendly man-machine interface, user friendly programming, easy to operate.

4.伺服驱动横竖两组送线调直滚轮，精准送料，完美调直；

4.Two groups of strong roller subassemblies powered with a servomotor ensure accurate wire feeding and excellent straightening.

5.自动调直，送线，成型，切断并记录数量；产品参数及预置生产数量，可以在生产过程中修改；

5.Automatic wire straightening, feeding, forming and recording the amount.The wire product size and parameters and presetting quantity,can also change and modify during producing.

6.适用于不同线径的钢线、铁线、不锈钢线、铜线和铝线等各种金属（圆形，扁型，方形，六角形等线材）的卷圆及各种成型。通常用于铁线制品、风扇网圈、工艺品、灯罩等行业。

6.Available for forming and bending different diameter of steel wire,iron wire, stainless steel wire, copper and aluminum wire,also other metals,which shape is round, flat, square, hexagonal, etc.Widely used in the industry of wire products, fan nets, handicrafts, lampshades etc.
